Solis Solar Inverter 2.0kW Mini S6 Single Trackers DC

#2 SOL-2.0-MINI-S6-DC Inverters - Main Units

#4: S6-GR1P2K-M-DC

*Collections are not permitted due to health & safety regulations*

For remote monitoring: .

For additional 10 year warranty -

Rating: 2,000W

Phases: 1

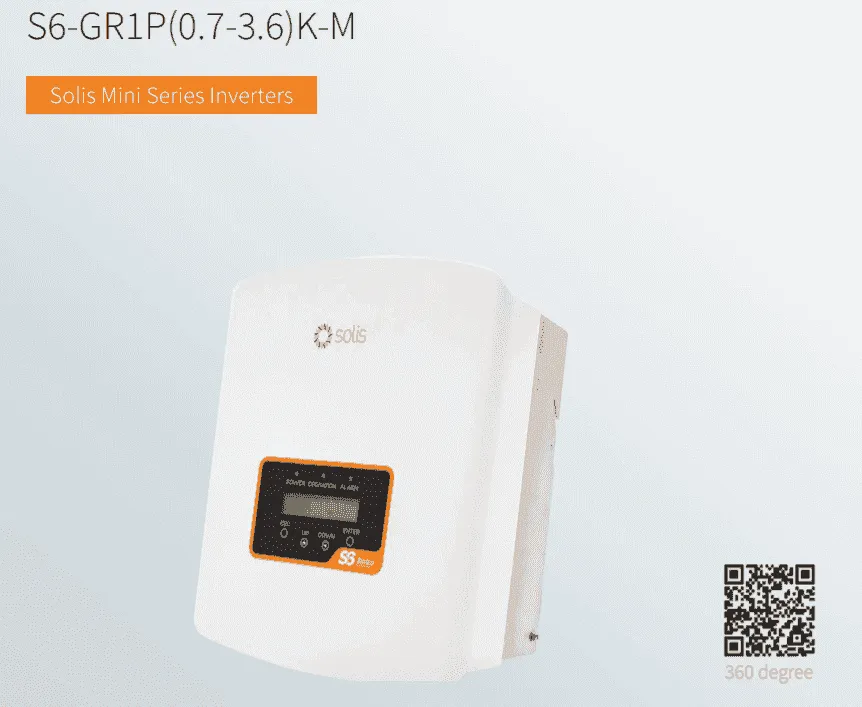

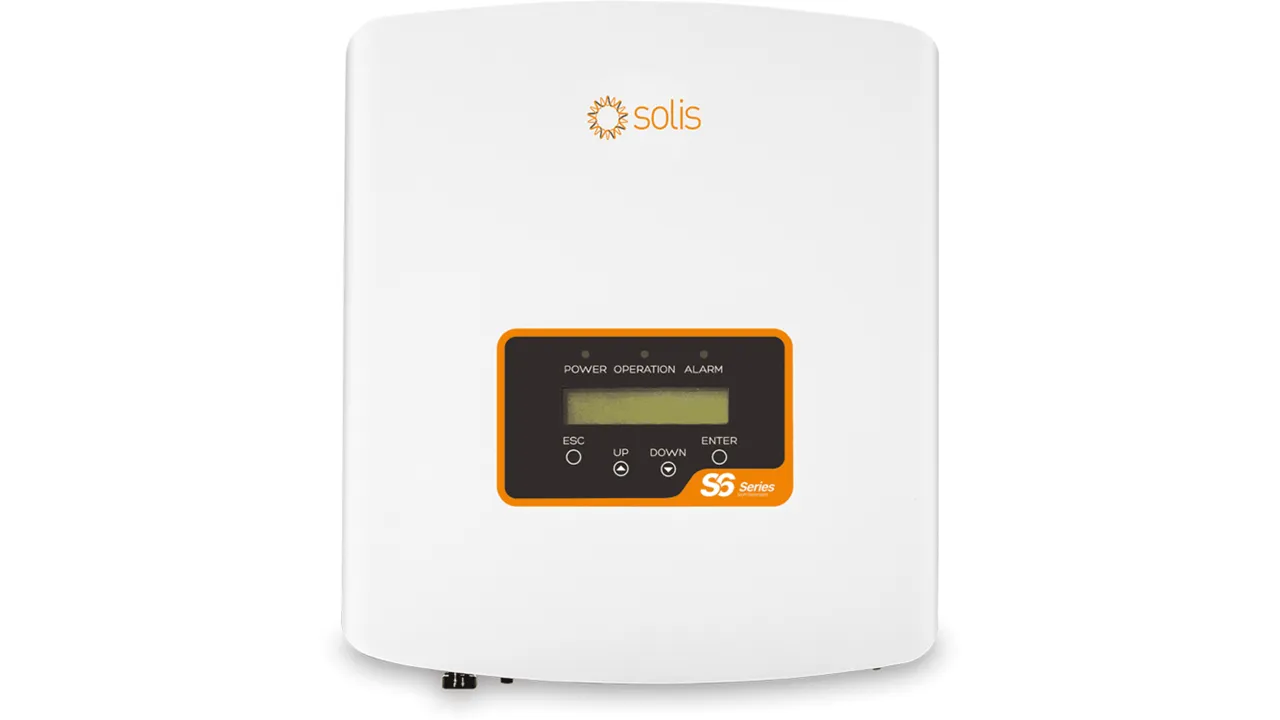

The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.

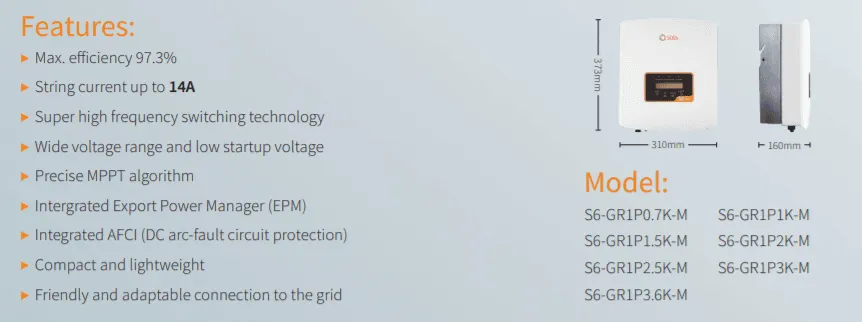

Product Features

Super high frequency switching technology with maximum efficiency of 96.6%

Max PV Power of 3kW

DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.

Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V

Intergrated Export Power Manager (EPM)

Integrated AFCI (DC arc-fault circuit protection)

Integrated DC switch for emergency shut-down of PV power or safe PV maintenance

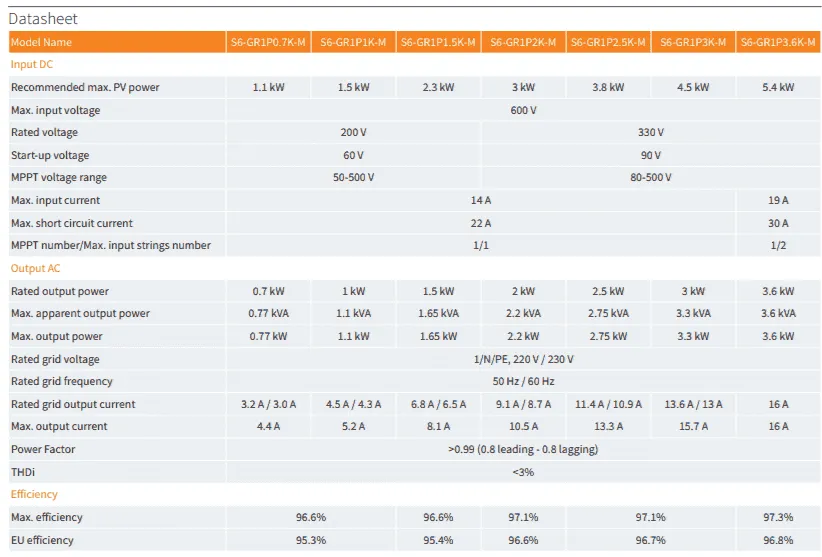

Rated Power: 2,000 W

Min PPT Voltage: 90 V

Max PPT Voltage: 500 V

DC Startup Voltage: 90 V

DC Shutdown Voltage: 80 V

Max Input Voltage: 600 V

Max DC Power: 3,000 W

Max AC Power (5 Minutes): 2,200 W

Surge AC Power (1 Second): 2,200 W

Max DC Current: 14 A

Max DC Inputs: 1

Has DC Fuses: 0

Connector: MC4

Included Connectors: 1

Euro Efficiency: 96.6 %

Transformer: None

MPPT Quantity: 1

Has Integrated DC Switch: Yes

Warranty: 5 years
