Product Details
＋

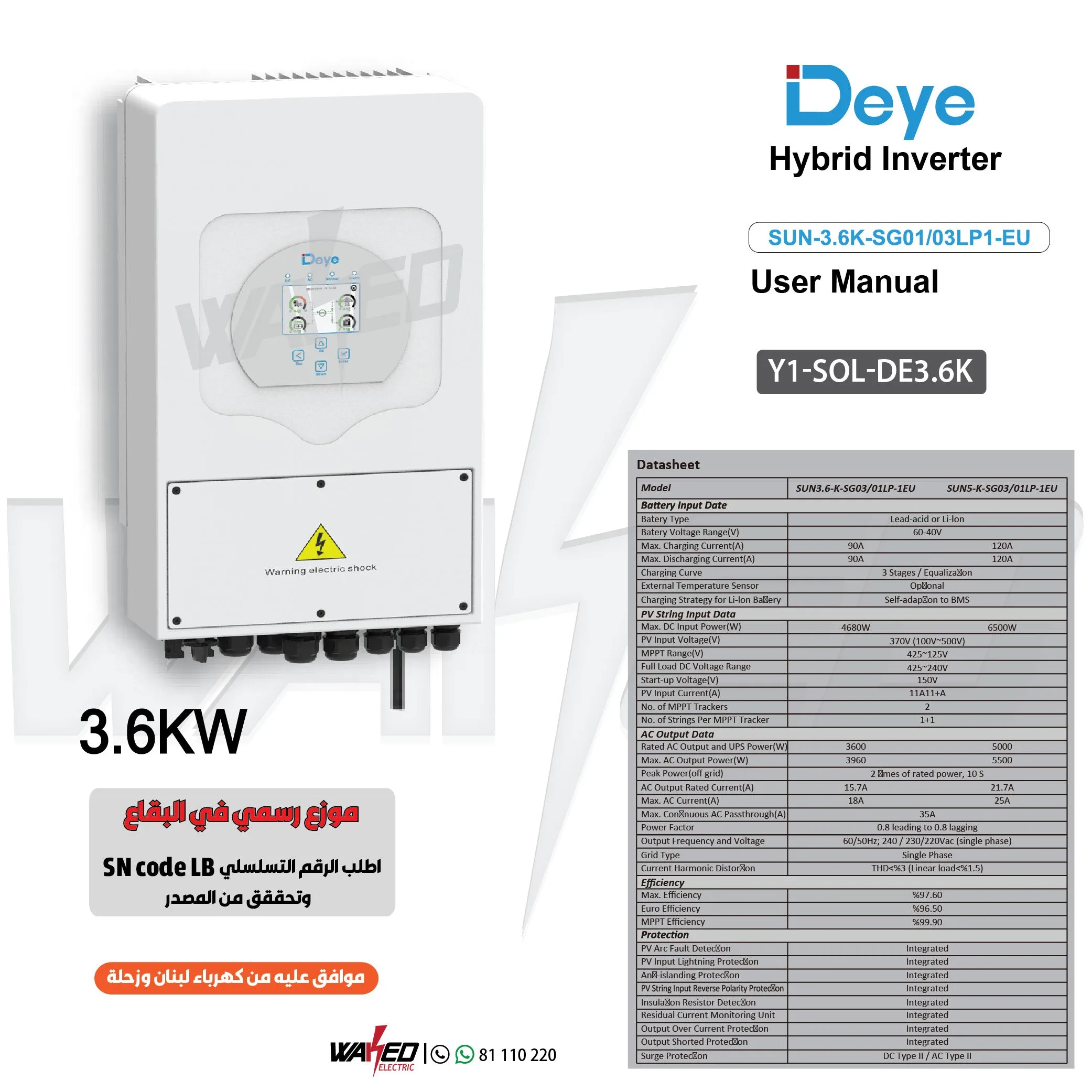

DEYE LB version
Hybrid Inverter ON/OFF GRID
SUN-3.6k-SG01/03LP-1EU
INCLUDING WIFI/PARALLEL KIT
| Model | SUN3.6-K-SG05LP-1EU SUN5-K-SG05LP-1EU |
| Battery Input Data | |
| Battery Type | Lead-acid or Li-Ion |
| Battery Voltage Range (V) | 60~40v |
| Max. Charging Current (A) | 90A 120A |
| Max. Discharging Current (A) | 90A 120A |
| External Temperature Sensor | Optional |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS |
| PV String Input Data | |
| Max. DC Input Power (W) | 4680w 6500w |
| Rated PV Input Voltage (V) | 370v(100v~500v) |
| Start-up Voltage (V) | 150v |
| MPPT Voltage Range (V) | 425-125v |
| Full Load DC Voltage Range (V) | 425-240v |
| PV Input Current (A) | 11A 11A |
| No. of MPPT trackers | 2 |
| No. of strings per MPPT tracker | 1 1 |
| AC Output Data | |
| Rated AC Output and UPS Power (W) | 3600 5000 |
| Max. AC Output Power (W) | 3960 5500 |
| AC Output Rated Current (A) | 15.7A 21.7A |
| Max. AC Current (A) | 18A 25A |
| Max. Continuous AC Passthrought (A) | 35A |
| Peak Power (off grid) | 2 time of rated power, 10$ |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 6./50Hz; 240/230/220Vac(single phase) |
| Grid Type | Single Phase |
| DC Injection current (mA) | THD<%3 (Linear load<%1.50 |
| Efficiency | |
| Max. Efficiency | �.60 |
| Euro. Efficiency | �.50 |
| MPPT Efficiency | �.90 |
| Protection | |
| PV Arc Fault Detection | Integrated |
| PV Input lightning protection | Integrated |
| anti-islanding protection | Integrated |
| PV string input reserve polarity protection | Integrated |
| insulation resistor detection | Integrated |
| residual current monitoring unit | Integrated |
| output over current protection | Integrated |
| output shorted protection | Integrated |
| surge protection | DC Type II/ AC Type II |
