Product Details
＋

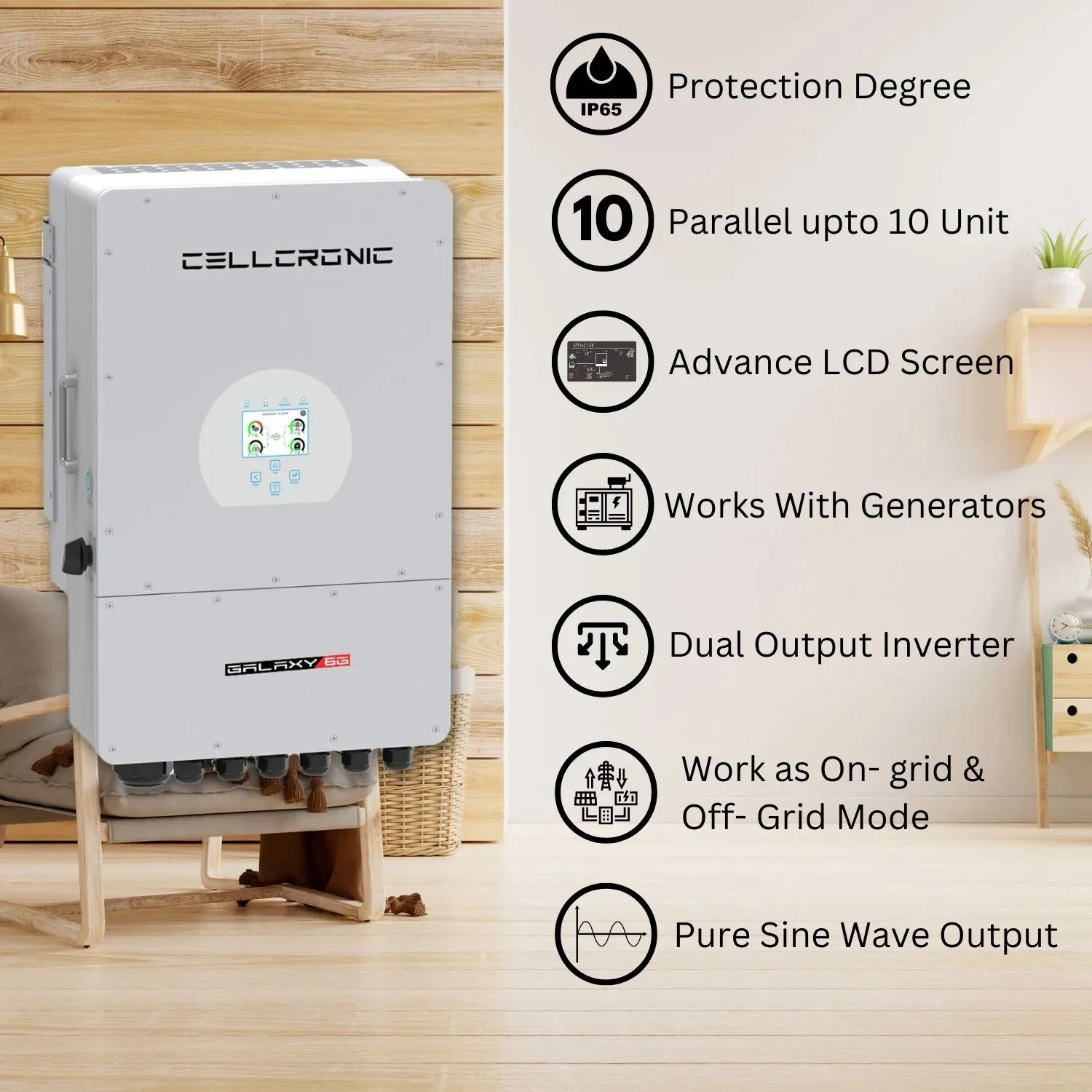

Key Specifications & Features
- AC couple to retrofifit existing solar system
- Works as On- grid and Off- Grid mode

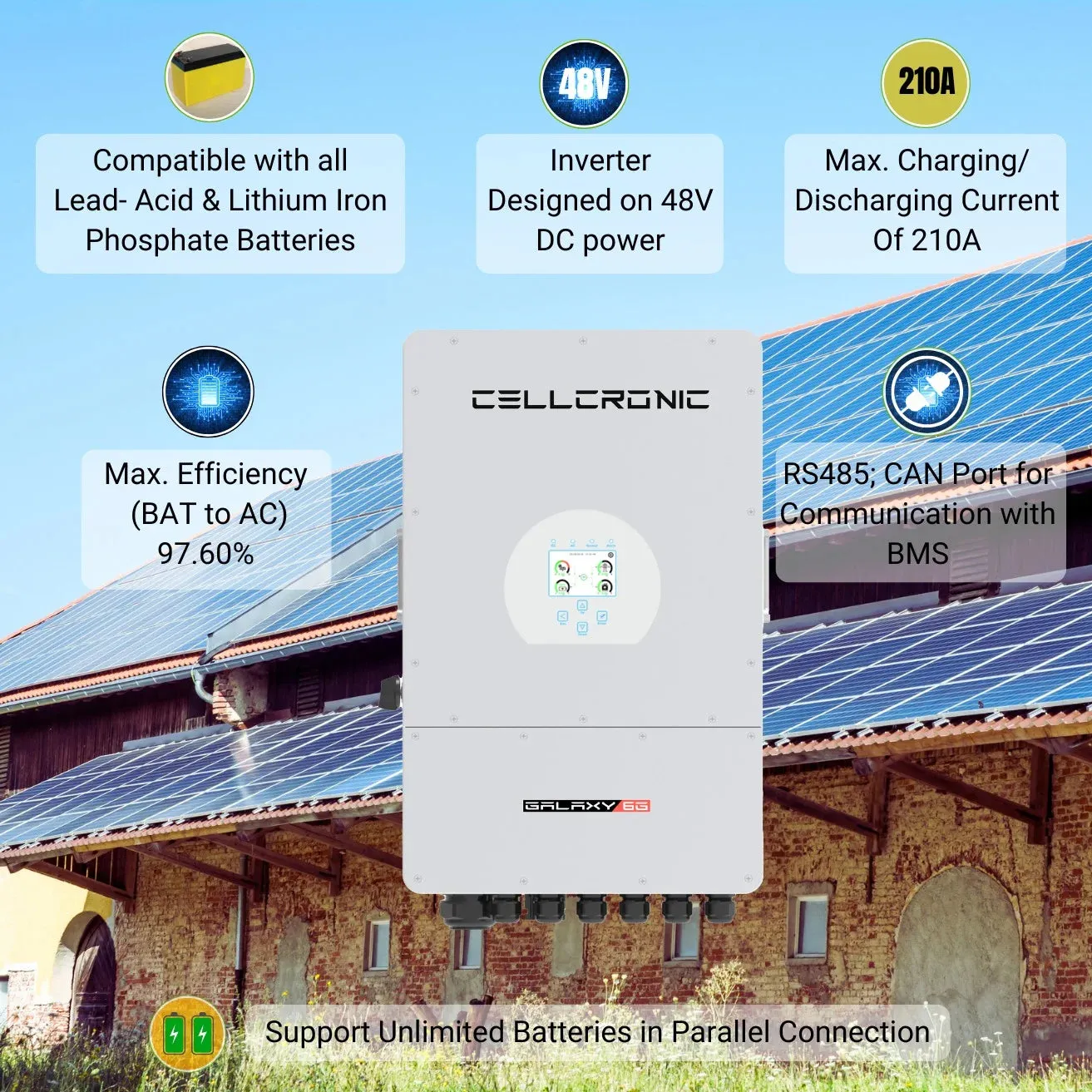

- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 140V-700VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 38kg

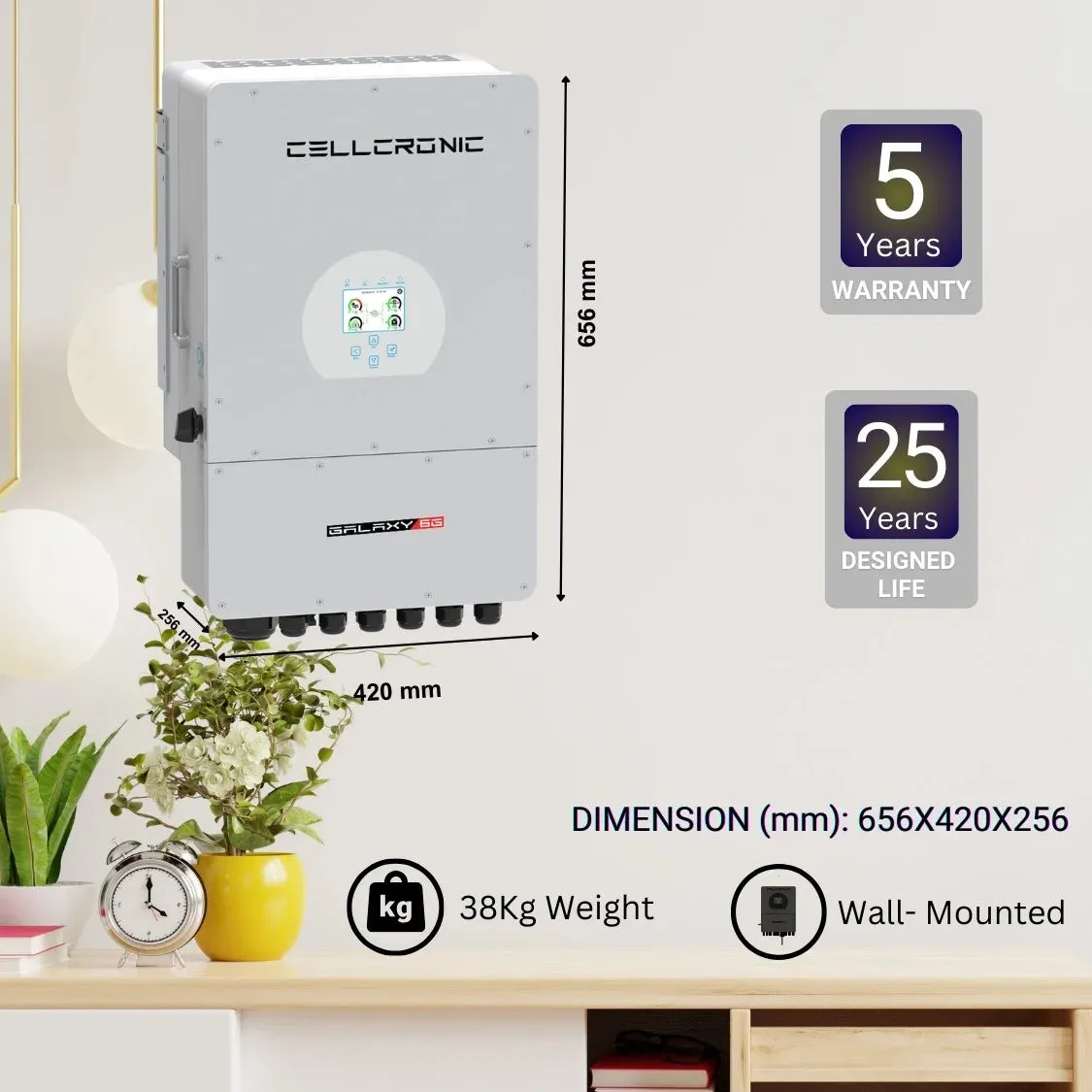

- Inverter Dimension 656Wx420Hx256D
- 25 years design life.

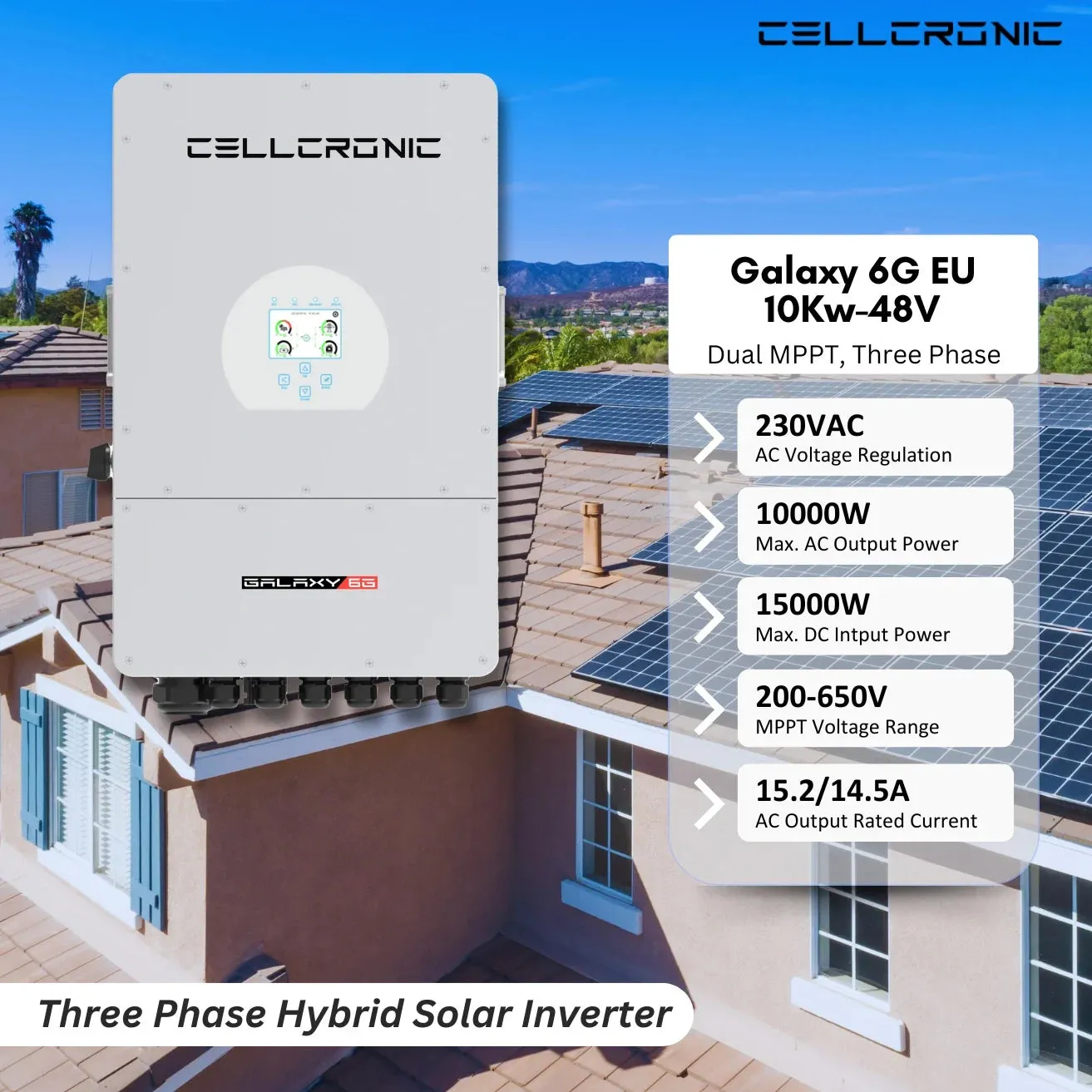

| Model | Galaxy 6G EU 10kw-48v Three Phase | ||
| Battery Input Data | |||
| Battery Type | Lead–acid or Lithium–ion | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 210A | ||
| Max. Discharging Current (A) | 210A | ||
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Optional | ||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| PV STRING INPUT DATA | |||
| Max. DC Input Power(W) | 15000W | ||
| PV input Voltage (V) | 550V (140V~800V) | ||
| MPPT Range (V) | 200V-650V | ||
| Start-up Voltage (V) | 160V | ||
| PV input Current (A) | 26A 13A | ||
| No. of MPPT Trackers | 2 | ||
| No. of Strings Per MPPT Tracker | 2 1 | ||
| AC OUTPUT DATA | |||
| Rated AC Output and UPS Power(W) | 10000W | ||
| Max. AC Output Power(W) | 11000W | ||
| Peak Power (off-grid) | 2 times of rated power, 10S | ||
| AC Output Rated Current(A) | 15.2A/14.5A | ||
| Max. AC Current(A) | 16.7A/15.9A | ||
| Max. Continuous AC Passthrough(A) | 60A | ||
| Output Frequency and Voltage | 50/60Hz;230/400Vac (Three Phase) | ||
| Grid Type | Three Phase | ||
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | ||
| EFFICIENCY | |||
| Max. Efficiency | 97.60% | ||
| Euro Efficiency | 97.00% | ||
| MPPT Efficiency | 99.90% | ||
| PROTECTION | |||
| PV Arc Fault Detection | Integrated(Except European Type) | ||
| PV Input Lightning Protection | Integrated | ||
| Anti-island Protection | Integrated | ||
| PV String Input Reverse Polarity Protection | Integrated | ||
| Insulation Resistor Detection | Integrated | ||
| Residual Current Monitoring Unit | Integrated | ||
| Output Over Current Protection | Integrated | ||
| Output Shorted Protection | Integrated | ||
| Output Over Voltage Protection | Integrated | ||
| Surge Protection | DC Type ll / AC Type ll | ||
| CERTIFICATION AND STANDARDS | |||
| Grid Regulation | UL1741, IE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727 | ||
| Safety Regulation | IEC62109-1, IEC62109-2 | ||
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | ||
| GENERAL DATA | |||
| Operating Temperature Range(°C) | -40 to 60℃, >45℃ Derating | ||
| Cooling | Intelligent Air Cooling | ||
| Noise(dB) | ≤50 dB | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC), OVC III(AC) | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 38Kg | ||
| Size (mm) | 422×658×254 (Excluding Connectors and Brackets) | ||
| Protection Degree | IP65 | ||
| Installation Style | Well-mounted | ||
| Warranty | 5 Years/10 Years | ||
